Features & Benefits

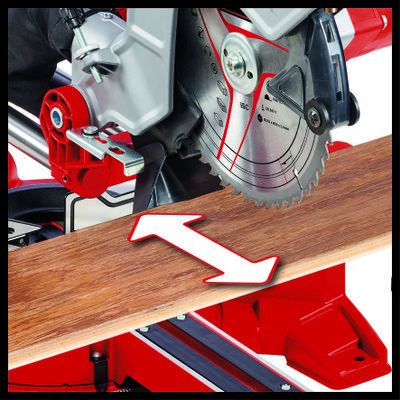

Smoothly running drag function for wide workpieces

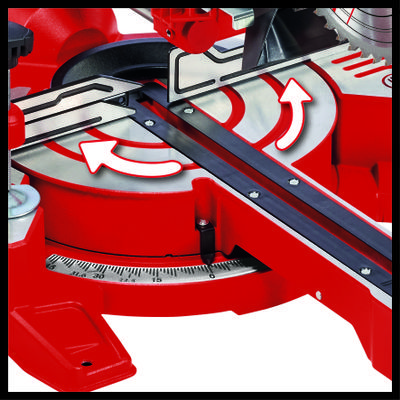

Turntable with precise quick angle setting for angular cuts
Turntable with accurate locking positions for all common angles

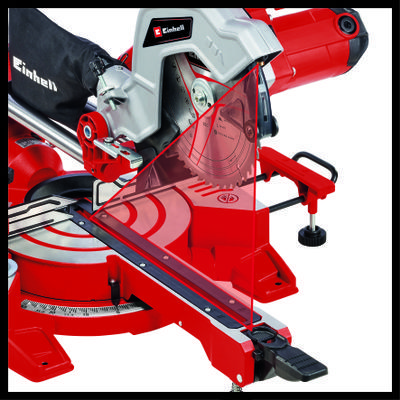

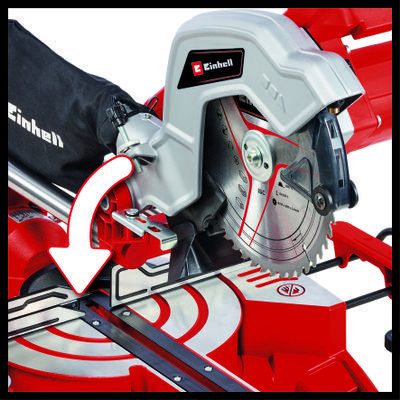

Saw head tilts to the left for perfect mitre cuts
The integrated laser is a welcome help for exactly cutting

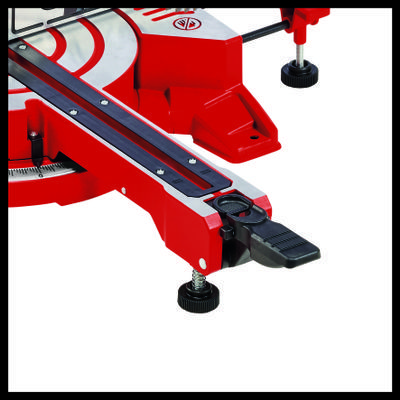

Workpiece supports on both sides for long workpieces
High-grade carbide-tipped precision saw blade for the best cuts

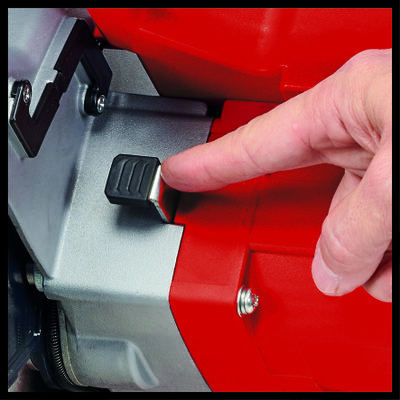

Spindle lock for an easy and fast saw blade change
Clamping device for holding the workpiece securely in position
Well readable scales for the angles and width

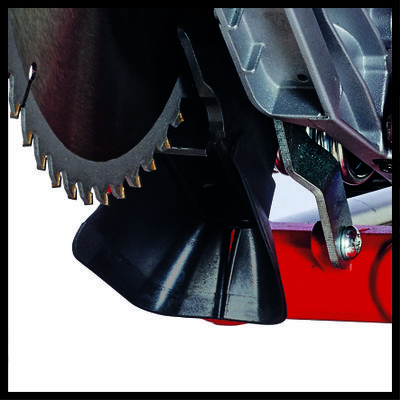

Dust funnel behind the saw blade for improved saw dust absorption

Technical Data

– Mains supply 220-240 V | 50 Hz
– Power 1500 W
– Number of saw teeth 48 Pieces
– Max. power (S6 | S6%) 1600 W | 25 %
– Idle speed 5200 min^-1
– Saw blade Ø216 x ø30 mm
– Mitre cut -45 ° – +0 °
– Swiveling range -47 ° – +47 °
– Cutting width 90° x 90° 305 x 65 mm
– Cutting width 90° x 45° 215 x 65 mm
– Cutting width 45° x 90° 305 x 35 mm
– Cutting width 45° x 45° 215 x 35 mm
– Diameter of suction adapter 36 mm

Logistic Data

– Product weight (kg) 12.74
– Gross weight (kg) 14.84
– Dimensions single packaging 790 x 460 x 380 mm
– Pieces per export carton 1 Pieces
– Gross weight export carton 14.84 kg
– Dimensions export carton 790 x 460 x 380 mm
– Container quantity (20″/40″/40″HC) 217 | 465 | 524
